How seals make the Roompot lock reliable

Sabrina Peters

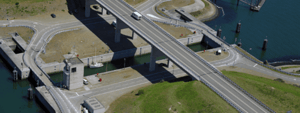

In a previous blog we told you more about the Park Locks project. Lagersmit is equally proud of its participation in replacing the seals in the Roompot lock. The Roompot lock is a navigation lock in the Eastern Scheldt storm surge barrier that facilitates shipping between the Eastern Scheldt and the North Sea. The lock derives its name from the Roompot navigation channel and is located in the former Noordland construction island. The Eastern Scheldt storm surge barrier itself is part of the Delta Works.

Delta Works & Eastern Scheldt storm surge barrier

The Delta Works in a nutshell. The Delta Works are a defence system in the Netherlands to protect against sea floods particularly along the provinces of Zeeland, the southern part of Zuid-Holland and Noord-Brabant. The Delta Plan had been conceived prior to the 1953 flooding disaster, although its necessity only became clear following this disaster. The plan to shorten the Dutch coastline by approximately 700 kilometres by constructing closed and permeable dams between the islands of the provinces of Zuid-Holland and Zeeland was initiated. As a result of this plan only the westernmost dikes had to be raised and reinforced, while they could be left intact further inland.


It took decades to construct the Delta Works. The project was declared complete following the completion of the Eastern Scheldt storm surge barrier (1986), the Maeslant surge barrier (1997) and completion of the heightening of all dikes up to delta level (Harlingse weir in August 2010). The Eastern Scheldt storm surge barrier can be closed off and contains large slides which in the event of a severe storm, possibly combined with a spring flood, can be closed, so that the high water cannot enter the Eastern Scheldt. This, highly complex solution for closing off the Eastern Scheldt was selected to retain the sea-water environment in the Eastern Scheldt. The original intent was to completely dam up the Eastern Scheldt.

A reliable, environmentally friendly sealing solution

In 2009, the Directorate-General for Public Works and Water Management (Rijkswaterstaat) Zeeland decided to replace the 64 seals in the Roompot lock with Lagersmit seals. Rijkswaterstaat wanted a reliable, environmentally friendly solution for the navigation lock gates, each of which weighs over 230 tonnes. The weight, combined with the fact that the wheels are located 10 metres below the surface, means that the quality of the seals has to meet high standards.


The Supreme LD seal is an environmentally friendly addition to the reliability of the Roompot lock. Rijkswaterstaat ordered 64 specially manufactured bronze Supreme LD seals and the first 32 seals were delivered in mid-June 2009. The Supreme LD is normally produced in cast iron. However, for this project it was decided to use bronze because it is better able to withstand seawater. A sand barrier was also constructed to prevent sand and fishing lines from causing any disruptions.

Flexibility & fast delivery times

Rijkswaterstaat values Lagersmit’s flexibility and fast delivery times. Lagersmit has a great deal of expertise in lock-related solutions. This is why Rijkswaterstaat is a well-known entity to us. For example, in 1987, the new locks in Hansweert were equipped with lock gates moving on bearing-wheels that had to keep out all dirt and water. Eighty specially adapted Lagersmit Supreme seals were incorporated into the wheel assemblies for the locks.

Would you like to know more about our lock solutions?

In addition to the Roompot lock project, we recently cooperated on the replacement of the shaft seals for the Park Locks in Rotterdam. If you would like to know more, take a look at our water page or contact us!
