SUPREME VENTUS® DUALFLOW
The Supreme Ventus® DualFlow is the emission free sealing solution for thrusters to keep your vessel going. The Supreme Ventus® DualFlow provides the functionality of the Supreme Ventus® and can drain fluid over more than ten meters in height, making this the ideal sealing system for a wide variety of large azimuth and azipull type thrusters
APPLICATIONS
- Retractable thrusters
- Dynamic positioning thrusters
- Vessels where height between Truster Box and Air Control Unit is 5+ meters
TYPE OF VESSEL(S)
- Icebreakers
- Cable laying vessels
- Heavy lift vessels
- Offshore construction vessels
- Wind turbine installation vessels
ADVANTAGES
- Drains leakage up to 10+ meter height
- In situ maintenance possible (ask for details)
- Zero emissions
- 100% intelligence
- 24/7 condition monitoring
- Pressure matching
- VGP/VIDA compliant
- Optimizing seal lifetime
VGP COMPLIANT
CONDITION MONITORING
MOVES LEAKAGES 10M+
HOW IT WORKS

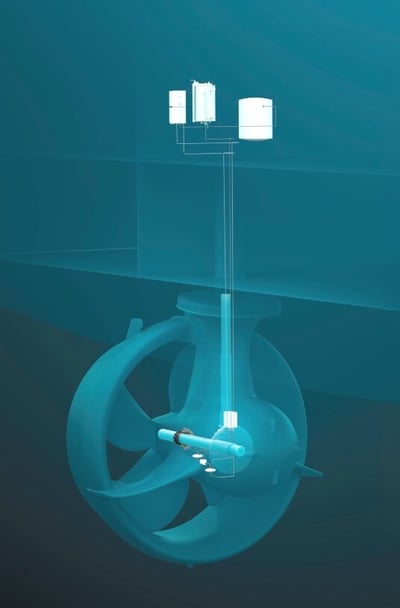

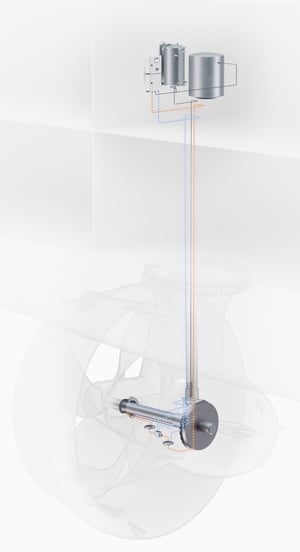

The Supreme Ventus® DualFlow system efficiently and smoothly handles leakage. It consists of three main parts: the Air Control Unit, the Thruster Box, and two Bottom Tanks.
- The Air Control Unit, located in the engine room, provides the necessary air supply.
- The Thruster Box acts as an air connection point inside the thruster.
- The Bottom Tanks collect and process the leakage.
Every 30 minutes, a draining cycle starts. First, the valve between the two tanks closes, and the second tank is pressurized. This pressure pushes the leakage through a drain line into the drain tank inside the Air Control Unit. When the drain tank is full, the system automatically starts an emptying cycle. During this cycle, the drain tank is pressurized, a pneumatic valve opens, and the leakage is discharged into the ship’s dirty oil tank.
The Supreme Ventus® DualFlow system provides a reliable and simple solution for handling leakage, combining efficiency with ease of use.
MATERIALS
The Supreme Ventus® DualFlow system is made with durable pneumatic components and pressure sensors. To ensure reliability and make assembly, installation, and maintenance easier, it uses well-known components from the Ventus MK2017 model. In addition, a third pressure sensor has been added to help detect issues in the Thruster Box more effectively.
TYPE AND DESIGN APPROVAL
The Supreme Ventus® DualFlow system is designed with industry-standard approvals to ensure it meets rigorous safety and performance requirements. While the specific type of design approvals may vary based on operational contexts and installations, the system generally adheres to recognized maritime safety and operational standards, confirming its reliability for use in marine applications.
